Traditional gravity separation of oil and water is overburdened as modern fully synthetic oils in particular, which are increasingly used in compressors, tend to emulsify in condensate. The good news: The BOGE CC-2 accommodates this with all compressor oils and is approved worldwide.
Condensate forms in any compressor. As the condensate mixes with oil in oil-lubricated compressors, it has to be processed prior to removal. However, even with modern fully synthetic compressor oils, there is a failing in the gravity separation that has been used up to now for processing condensate. BOGE CC-2 oil-water separators therefore operate with different filter stages. The condensate is discharged from above via a pressure relief chamber and flows through the first polypropylene element. The next filter stage takes place in the second tower, before the charcoal filters out the final impurities – therefore residual oil content of < 10 ppm is achieved at the outlet and that applies to all compressor oils.
| Model |
Compressor Performance m3/min |
Oil adsorption capacity Litres |
Dimensions WxDxH mm |
Weight kg |
|---|---|---|---|---|
| CC 2-2 | 2 | 2 | 255 x 239 x 230 | 3 |

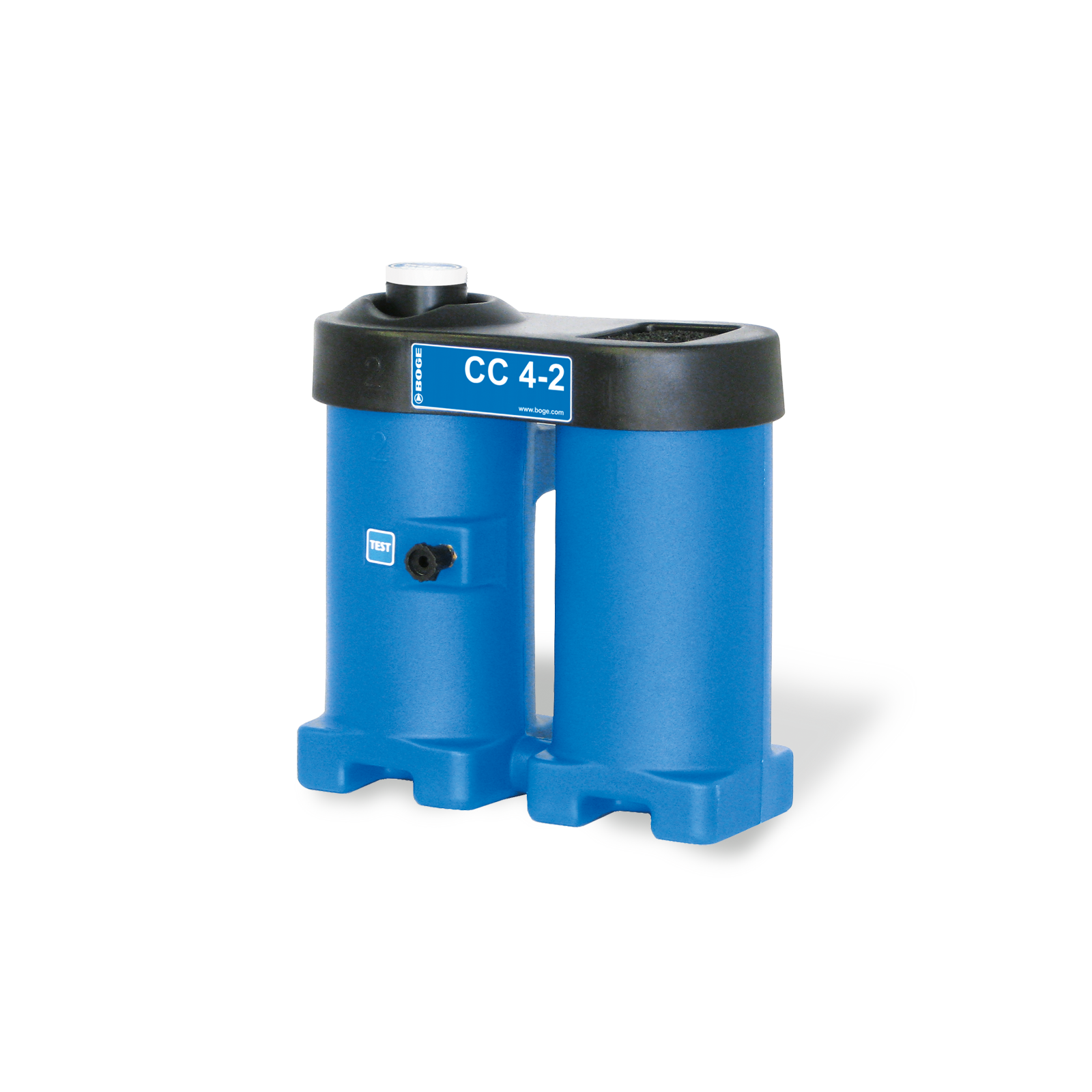

| CC 4-2 | 4 | 4 | 392 x 368 x 210 | 8 |

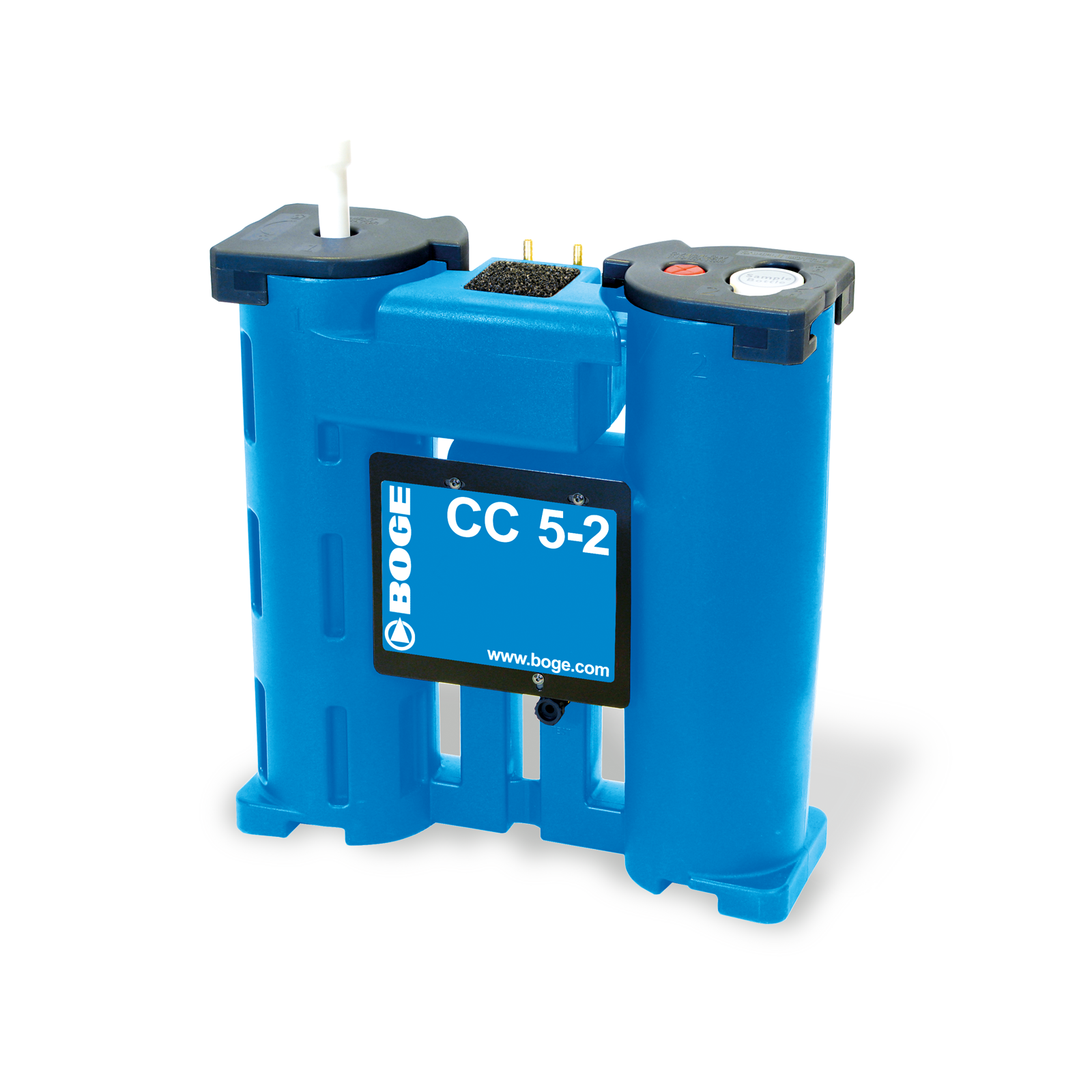

| CC 5-2 | 5 | 5 | 530 x 610 x 190 | 10 |

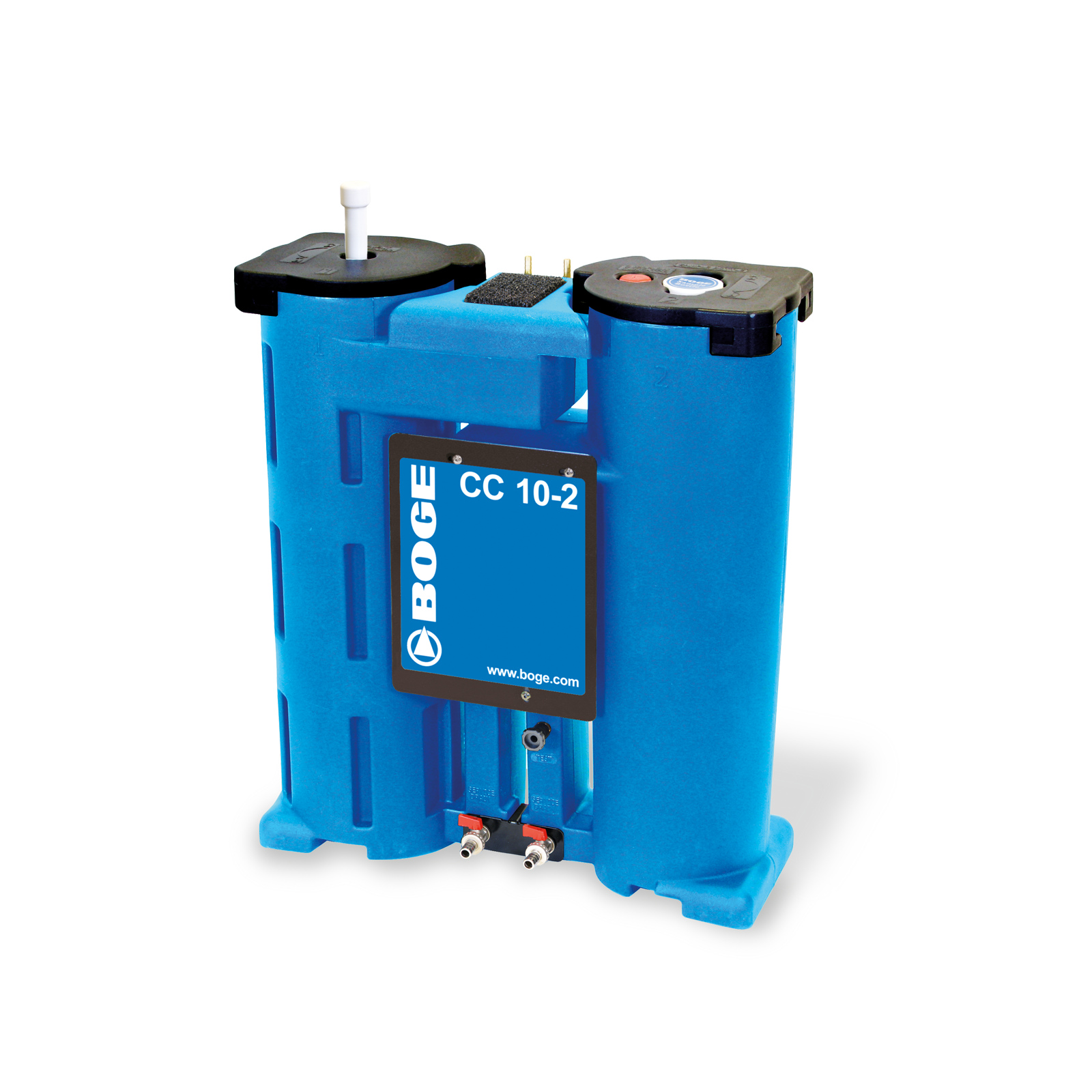

| CC 10-2 | 10 | 10 | 650 x 750 x 240 | 17 |

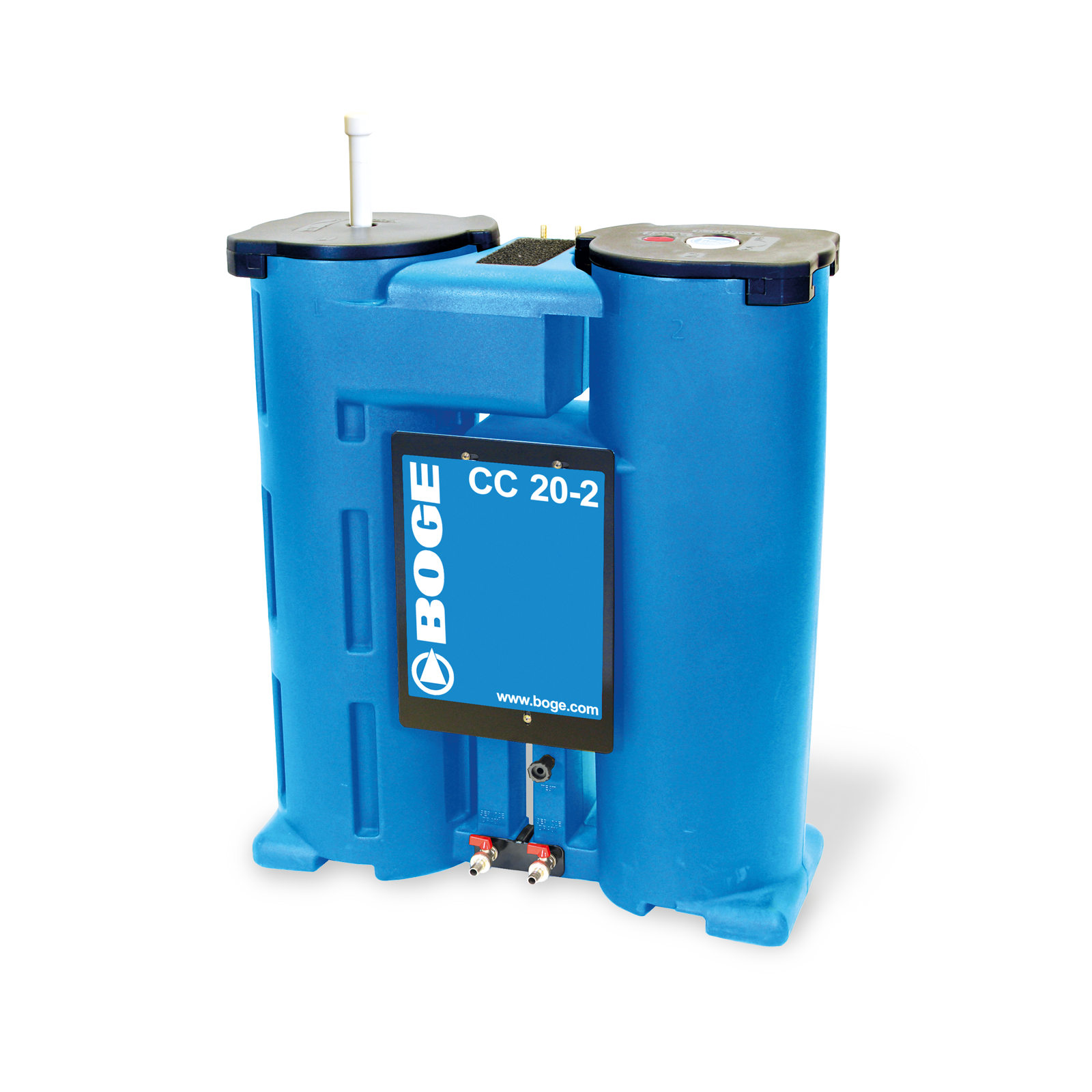

| CC 20-2 | 20 | 15 | 780 x 900 x 305 | 30 |

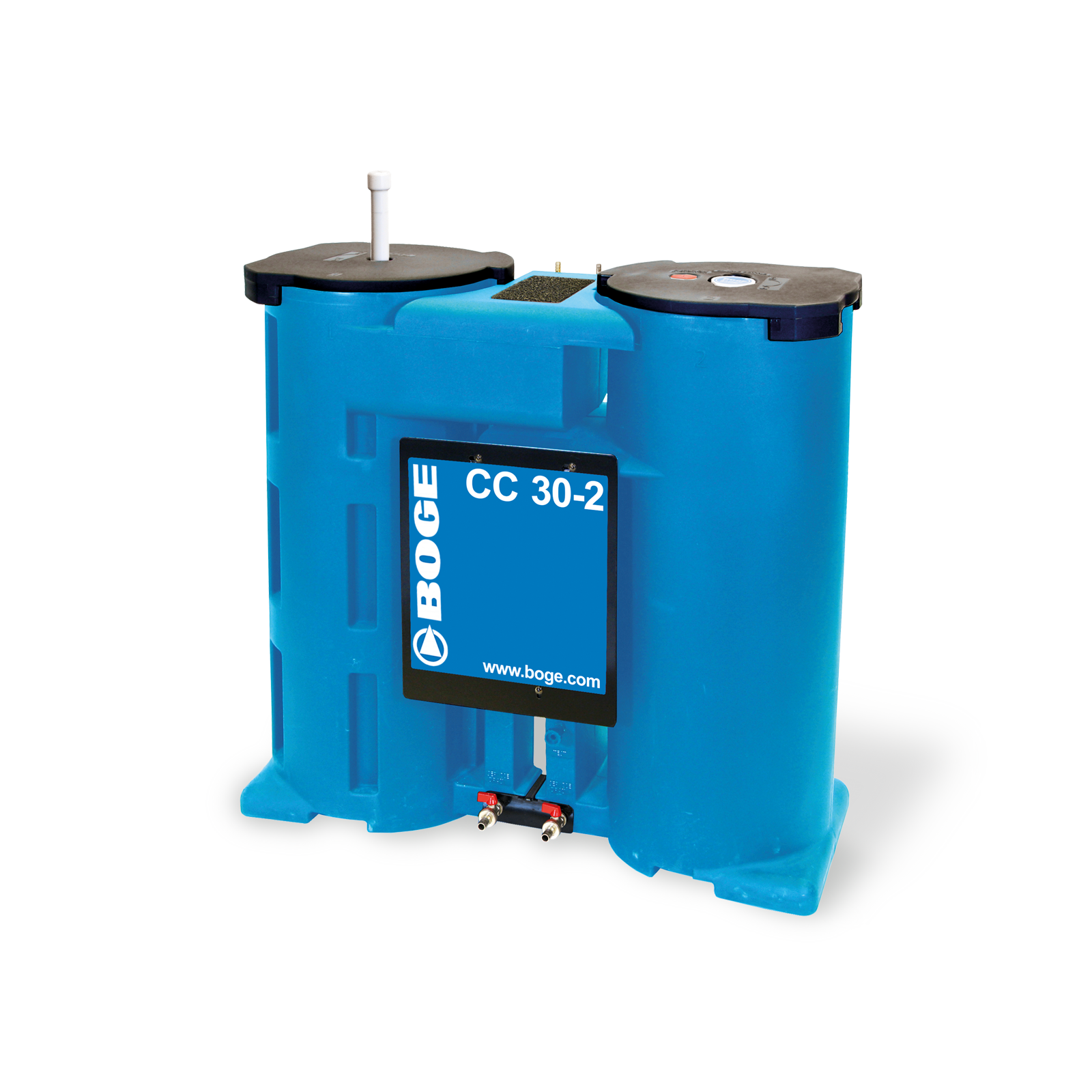

| CC 30-2 | 30 | 25 | 970 x 900 x 380 | 43 |

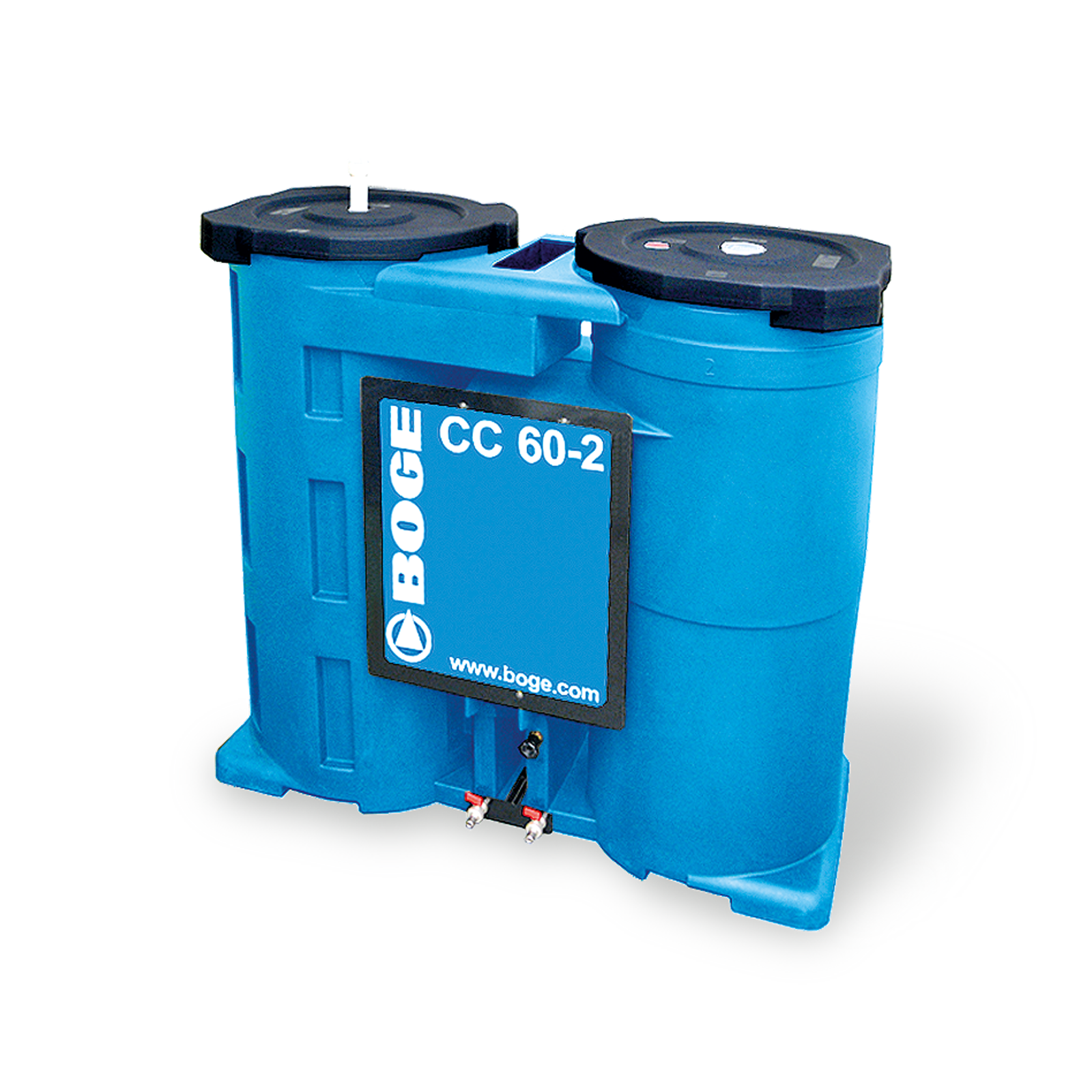

| CC 60-2 | 60 | 50 | 1160 x 1040 x 480 | 74 |
